Product Details:
|
Email: | Yli97584@gmail.com | Whatsapp: | +85267220981 |
---|---|---|---|
Model No: | R902044777 A11VLO190DRS+A11VO75DRS R902064920 A11VLO190DRS+A11VO95DRS | After Serive: | Online Video |
Products Name: | Rexroth Hydraulic Piston Pump | Rotation: | Clockwise |
Seal Type: | Lip Seal Or Mechanical Seal | Transport Package: | Wooden Box |
Pressure: | High Pressure |

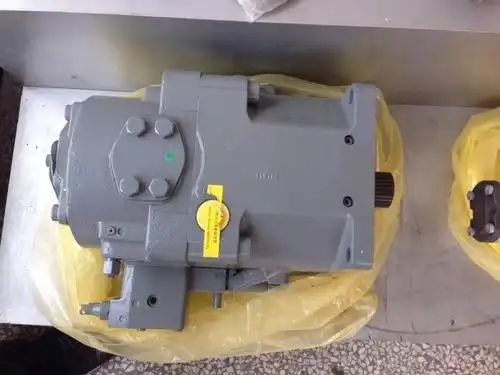

R902044777 A11VLO190DRS+A11VO75DRS R902064920 A11VLO190DRS+A11VO95DRS Hydraulic twin pump, Rexroth plunger pump, excavator motor
REXROTH A11VLO Series Variable Displacement Axial Piston Pumps |
Product Description |
The A11VLO series is a high-performance swashplate-type variable displacement pump designed for open-circuit hydraulic systems. It is widely used in mobile and industrial applications, including construction machinery, cranes, and concrete pumps, due to its high efficiency, precise control, and robust design. |
Key Features |
1. High Pressure & Efficiency |
◦ Rated pressure: 350 bar (peak 400 bar), with an upgraded 450-bar version (A11VLO/1x-H) for extreme loads. |
◦ Energy savings up to 30% via stepless flow adjustment and load-sensing control, reducing partial-load waste. |
2. Advanced Control Options |
◦ Supports multiple control mechanisms: |
▪ LR (Constant Power): Maintains stable power output under varying loads. |
▪ LRDS (Electronic Proportional Control): Adjusts displacement via 24V signals (200–600mA). |
▪ Pressure Cutoff & Load Sensing: Automatically limits pressure or matches flow to demand. |
3. Integrated Boost Pump |
◦ Unique centrifugal boost pump design (marked "L" in model codes) enhances suction performance, enabling higher speeds (up to 2,600 rpm) and compact installations in space-constrained applications (e.g., offshore piling). |
4. Durable Construction |
◦ High-strength cast iron housing and hardened friction pairs (e.g., pistons, swashplate) for extended lifespan. |
◦ 100% through-drive capability: Allows串联 connection with gear pumps or additional piston pumps. |
Technical Specifications |
Model |
A11VLO40 |
A11VLO145 |
A11VLO190 |
A11VLO260 |
R902012178 A11VLO190LRDS/11L-NZD12N00 |
R902012194 A11VLO190LRDS/11R-NZD12N00 |
R902012579 A11VLO190DRS/11L-NSD12N00 |
R902013688 A11VLO190DRS/11R-NZD12K02 |
R902013824 A11VLO190LR3DS/11R-NZD12K04 |
R902014644 A11VLO190LRDS/11R-NZD12KXX-S |
R902014789 A11VLO190DRS/11R-NZD12N00 |
R902015194 A11VLO190LRS/11R-NSD12N00 |
R902015195 A11VLO190LRS/11R-NPD12N00 |
R902015196 A11VLO190LRS/11R-NSD12K02 |
R902015197 A11VLO190LRS/11R-NPD12K02 |
R902015252 A11VLO190DRS/11R-NSD12N00 |
R902015253 A11VLO190DRS/11R-NPD12N00 |
R902015254 A11VLO190DRS/11R-NSD12K02 |
R902015255 A11VLO190DRS/11R-NPD12K02 |
R902016408 A11VLO190HD1D/11L-NTD12K07 |
R902017407 A11VLO190LE2S6/11R-NZD12N00-S *AL* |
R902018565 A11VLO190LG2DS/11L-NZD12N00-S |
R902021290 A11VLO190LRDH2/11R-NSD12K02 |
R902021294 A11VLO190LRDH2/11L-NSD12K07 |
R902021442 A11VLO190LRDS/11R-NSD12KXX-S |
R902021445 A11VLO190LRDS/11L-NTD12K72 |
R902023004 A11VLO190EPXS/11L-NSD12K07-S *G* |
R902023045 A11VLO190LG1DH2/11L-NZD12N00 |
R902023047 A11VLO190LRDH2/11L-NZD12K02 |
R902023210 A11VLO190LRDU2/11R-NZD12K01 *G* |
R902025233 A11VLO190EP2D/11L-NSD12N00 *G* |
R902025374 A11VLO190LRDH2/11L-NTD12K07 |
R902025375 A11VLO190LRDH2/11R-NTD12K02 |
R902025376 A11VLO190DRS/11R-NTD12K02 |
R902026927 A11VLO190LG2H2/11R-NZD12K84 |
R902026928 A11VLO190LG2H2/11R-NZD12K07 |
R902027513 A11VLO190LRDS/11L-NZD12N00-S |
R902027543 A11VLO190LRDS/11R-NPD12N00 |
R902027948 A11VLO190LRDS/11L-NSD12N00-S |
R902027998 A11VLO190LG/11 A4VG71EP2/32 *G* |
R902027999 A11VLO190LG2H2/11L-NZD12K07 |
R902028003 A11VLO190LG2H2/11L-NZD12K02 |
R902028018 A11VLO190LG2H2/11L-NZD12KXX-S |
R902028212 A11VLO190LRDH1/11R-NZD12N00 |
R902028216 A11VLO190LR/11R-NZD12N00 |
R902028361 A11VLO190EP2G/11L-NZD12K02-S *G* |
R902029132 A11VLO190LRDC/11R-NZD12K84 |
R902029133 A11VLO190LRDC/11R-NZD12N00 |
R902029194 A11VLO190DRL/11R-NPD12N00 |
R902029199 A11VLO190LRDC A11VLO190LRDC |
R902029358 A11VLO190LRDH2/11L-NSD12K01 |
R902030100 A11VLO190LRDH2/11R-NSD12K04 |
R902030113 A11VLO190LRDS/11R-NSD12K02 |
R902030127 A11VLO190LRDS/11R-NSD12K01 |
R902030167 A11VLO190LE4S5/11R-NZG12K01-S |
R902030239 A11VLO190DRS/11R-NPD12N00 *G* |
R902030289 A11VLO190LE4S5/11R-NZG12K01-K |
R902031011 A11VLO190LRDH1/11 A11VLO130LRDH1/11-K |
R902031012 A11VLO190LRDH1/11R-NZD12K83 |
R902031078 A11VLO190EP2D/11L-NZD12K04 *G* |
R902031092 A11VLO190LRDH2/11R-NZD12K02 |
R902031108 A11VLO190LRH1/11R-NZD12K02 |
R902031150 A11VLO190LG2D/11R-NTD12K01-SK |
R902031151 A11VLO190LG2D/11R-NTD12K01-SK |
R902031152 A11VLO190LG2D/11L-NTD12K01-SK |
R902031153 A11VLO190LG2D/11R-NTD12K01-S |
R902031162 A11VLO190EPXS/11L-NSD12K04-S *G* |
R902031170 A11VLO190LG1S/11L-NZD12N00 |
R902032205 A11VLO190DRS/11R-NZD12K02-K |
R902032291 A11VLO190LRDH1/11R-NZD12K02-K |
R902032292 A11VLO190LRDH1/11R-NZD12K02 |
R902032293 A11VLO190LRDH1/11R-NZD12K01-K |
R902032294 A11VLO190LRDH1/11R-NZD12K01 |
R902032424 A11VLO190LRDH1/11R-NZD12K04 |
R902032425 A11VLO190LRDH1/11 A11VO40DRS/10 |
R902032479 A11VLO190DRS/11R-NPD12K17 |
R902032528 A11VLO190LRDH1/11L-NSD12N00 |
R902032664 A11VLO190LRDS A11VLO190LRDS |
R902032665 A11VLO190LRDS/11R-NZD12K84 |
R902033532 A11VLO190LG2D/11L-NTD12K01-S |
R902033557 A11VLO190HD1/11L-NZD12N00 |
R902033651 A11VLO190EPXS/11L-NSD12K02-S *G* |
R902033672 A11VLO190EP2D/11L-NZD12N00-S *G* |
R902033716 A11VLO190DRS/11L-NSD12K02 |
R902034776 A11VLO190DRS/11L-NPD12N00 |
R902034854 A11VLO190LE4S5/11R-NZG12K01-K |
R902034972 A11VLO190LRD/11R-NZD12K02-SK |
R902034973 A11VLO190LRD/11R-NZD12K02-S |
FAQ:
Rexroth A11VLO190 FAQ
1. What is the Rexroth A11VLO190?
• Answer: The A11VLO190 is an axial piston variable displacement pump designed for open-circuit hydraulic systems. It features a swashplate design, adjustable flow control (0 to max output), and is widely used in mobile hydraulics (e.g., dump trucks, construction machinery) and industrial applications.
2. What are the key specifications?
• Displacement: 193 cm³/rev (max).
• Pressure: 350 bar (nominal), 400 bar (max).
• Speed: Up to 2,500 rpm (at Vg max).
• Flow Rate: 483 L/min (at nominal speed).
• Power Output: 281 kW (at 350 bar).
• Weight: ~104 kg.
3. What control options are available?
• Standard Controls:
◦ LR: Power control.
◦ LRDU2: Hydraulic remote control.
◦ EP2D: Electronic proportional control.
• Optional Controls: Load sensing (LS), pressure cutoff (DRS), cross-sensing (LRCS).
4. What are the compatible models or sizes?
• The A11VLO series includes sizes from 40 to 260 (e.g., A11VLO130, A11VLO145, A11VLO260). The A11VO series (110–280) is also related but optimized for higher power demands.
5. How is the pump installed and maintained?
• Installation:
◦ Ensure clean hydraulic fluid (NAS 1638 ≤9 grade recommended).
◦ Avoid axial force on the pump shaft during mounting.
◦ Use proper filtration (5–10 µm) for oil filling.
