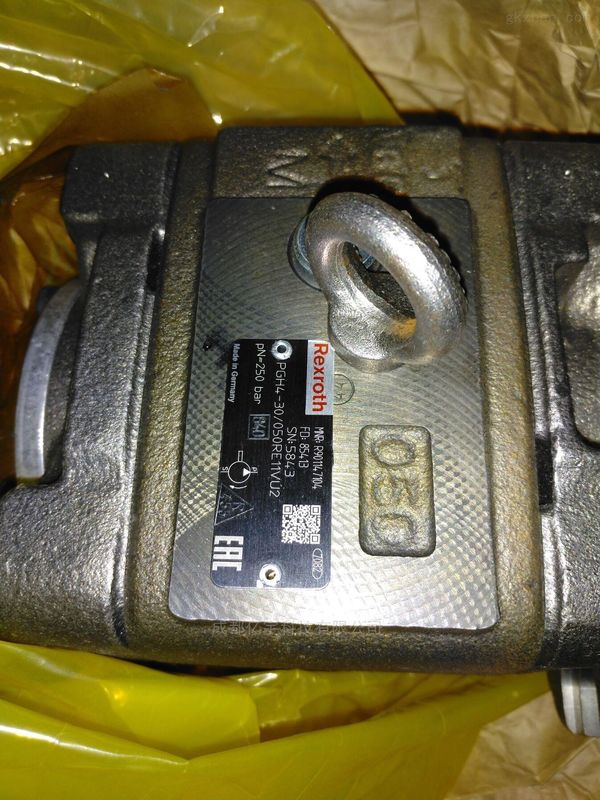

PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump

PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump
PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump
PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump

Large Image :  PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump

Product Details:
Place of Origin: ISO
Brand Name: Rexroth
Certification: ISO
Model Number: PGH4-21/020RE11VU2 PGH4-21/040RE11VU2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: Wooden crate
Delivery Time: 2-4 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump

Description
Whatsapp: +85267220981 Email: Yli97584@gmail.com
Maximum Pressure: 280 Bar Pressure Rating: 280 Bar
Model No: PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Speed: 3 Speed Settings
Inlet Connection: Threaded Or Flanged

PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump

REXROTH PGH Series Internal Gear Pumps

Product Description

The PGH series is a fixed-displacement, internal gear pump with leakage gap compensation, designed for high efficiency and low noise operation. It is widely used in industrial hydraulic systems requiring precise fluid delivery under high pressure (up to 350 bar) and variable viscosity conditions.

Key Features

1. High Efficiency:

  ◦ Gap compensation technology ensures optimal performance even at low speeds or with low-viscosity fluids.

  ◦ Low noise and minimal flow pulsation due to optimized gear geometry (involute tooth profile) and extended meshing length.

2. Versatile Performance:

  ◦ Suitable for a wide range of viscosities (12–20,000 mm²/s) and speeds (200–3,000 rpm depending on model).

  ◦ Compatible with HFC fluids (when equipped with W-seal).

3. Robust Design:

  ◦ Components include pump body, gear ring, pinion shaft, sliding bearings, axial plates, and sealing elements (e.g., FKM/Viton or NBR seals).

  ◦ Axial compensation via pressure fields ensures minimal internal leakage.

4. Modularity:

  ◦ All sizes (PGH2–PGH5) and displacements can be freely combined or paired with other pumps (e.g., PGF gear pumps, axial piston pumps).

Technical Specifications

Model Range
PGH2 (BG2)
PGH3 (BG3)
PGH4 (BG4)
PGH5 (BG5)

*Speed varies by displacement.

Applications

• Industrial Machinery: Plastic injection molding, presses, CNC machines.

• Energy & Wind Turbines: Lubrication systems.

• Mobile Hydraulics: Construction and agricultural equipment.

Common Models

• PGH2-21/008RR07VU2

• PGH3-2X/011RE07VU2

• PGH4-2X/040RE11VE4

• PGH5-3X/063RE11VU2.

Advantages Over Competitors

• Lower noise compared to external gear pumps.

• Higher pressure tolerance (vs. standard gear pumps).

• Interchangeable components reduce maintenance costs.

Supplier Information

• Primary Distributors: Xiamen Dongqian International (China), Dongguan Guanglian Automation.

• Pricing: Typically under ¥10,000 (varies by model and supplier).

PGH4-21/020RE11VU2 PGH4-21/040RE11VU2 Rexroth original hydraulic gear pump 0

R900086325 PGH4-2X/063RE07VU2
R900932195 PGH5-2X/160RE07VE4-A388
R900932184 PGH5-2X/250RE07VE4-A388
R900932176 PGH5-2X/250RE07VE4
R900932175 PGH5-2X/125RE11VE4
R900932174 PGH5-2X/100RE11VE4
R900932173 PGH5-2X/080RE11VE4
R900932172 PGH5-2X/063RR11VU2
R900932171 PGH5-2X/160RE07VU2
R900932169 PGH5-2X/125RE11VU2
R900932168 PGH5-2X/063RE11VU2
R900932166 PGH4-2X/080RE07VE4
R900932165 PGH4-2X/063RE07VE4
R900932163 PGH4-2X/050RE11VE4
R900932162 PGH4-2X/040RE11VE4
R900932161 PGH4-2X/032RE11VE4
Rexroth PGH Internal Gear Pump
Model specifications: 2, 3, 4, and 5 2X series
Maximum working pressure: 350 bar
Maximum displacement: 6-250cm3
Low operating noise and minimal vibration
Sealing gap compensation enables efficient operation even at low speeds and low viscosities
Suitable for various speeds and viscosity ranges
All installation and rated size components can be connected
Can be connected and used with vane pumps and axial piston pumps

R900932160 PGH4-2X/100RE07VU2
R900932159 PGH4-2X/050RE11VU2
R900932141 PGH4-2X/032RE11VU2
R900932140 PGH4-2X/025RE11VU2
R900932139 PGH4-2X/020RE11VU2
R900932125 PGH3-1X/010RE07ME4
R901147116 PGH5-3X/080RE11VU2
R901147115 PGH5-3X/063RE11VU2
R900571870 PGH2-1X/005LF47MK0
R900538573 PGH3-1X/016RE47MU2
R900538572 PGH3-1X/013RF47MK0
R900538571 PGH3-1X/013RE47MU2
R900538569 PGH3-1X/010RE47MU2
R900538568 PGH2-1X/008RF47MK0
R900538567 PGH2-1X/008RE47MU2
R900538566 PGH2-1X/006RE47MU2
R900537374 PGH3-1X/013RE07ME4
R900533128 PGH2-1X/005RE47MU2
R901123008 PGH4-2X/100RE07WU2
R901098317 PGH5-2X/125RR11WU2
R901097956 PGH4-2X/100LR07WU2-A456
R901089561 ABAPG-PGH2-005U2/132S-6-B0/SE
R901064895 PGH5-2X/063RE11WU2
R901062757 PGH5-2X/100RE11VU2-A445
R900951303 PGH3-2X/011RE07VU2
R900951301 PGH2-2X/006RE07VU2
R900932175 PGH5-2X/125RE11VE4
R900932166 PGH4-2X/080RE07VE4
R900932165 PGH4-2X/063RE07VE4
R900932159 PGH4-2X/050RE11VU2
R900932141 PGH4-2X/032RE11VU2
R900932140 PGH4-2X/025RE11VU2
R900932139 PGH4-2X/020RE11VU2
R900245596 PGH4-2X/025RE11VU2-A280B
R900204884 PGH5-2X/200RE07VE4-A388
R900064616 PGH3-1X/010LE07MU2
R900061672 PGH2-1X/006RE07ME4

FAQ:

Q: What are the main products your company deals in?
A: 1. Distribute world famous pumps, valves and motors.
2. Production and processing of " FENGTOU " brand vane pump, gear pump, plunger pump, valve, motor and maintenance parts.
3. Maintained servo valves, plunger pumps and motors of many brands.
Q: What are the terms of payment?
A: 1. Full order: 30% as advance payment for the order, balance to be paid off before shipment.
2. Small order/sample order/maintenance order: full payment in advance.
Q:Can I mark my own brand on the pump?
A: Yes. Full order can mark your brand and code.
Q: How long is the warranty?
A: 1. The purchase order, we guarantee for 12 months.
