Product Details:
|
Whatsapp: | +85267220981 | Email: | Yli97584@gmail.com |
---|---|---|---|
Structure: | Variable Axial Piston | Transport Package: | Wooden Box |
Operating Mode: | Pump, Open Circuit | Drive Mode: | Mechanically Driven Pump |
Delivery Date: | 2. 3, 4, 5 X Series | Shaft Diameter: | 25-40 Mm |
Control Type: | Pressure And Flow Control |

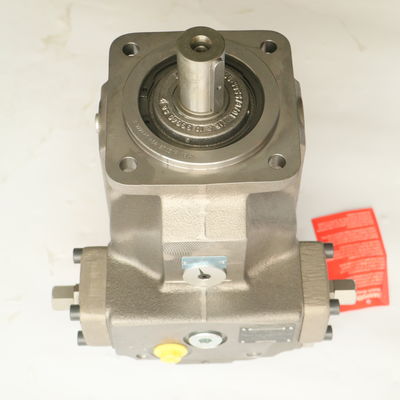

A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth hydraulic pump variable axial piston pump motor
Parameter Category Optional Options Model Example Reference Source |
Control methods include DR (constant pressure control), DRG (remote constant pressure control), LR (constant power control), DFR (pressure/flow control), EO2 (electric proportional control), etc. A4VSO71 DR/10R-PPB25N00 |
Series 10, 11, 30 A4VSO71 DR/10R-PPB25N00 |
Rotation direction R (clockwise), L (counterclockwise) A4VSO71 DR/10R-PPB25N00 |
Seal type P (NBR nitrile rubber+FKM shaft seal), V (fluororubber FKM) A4VSO71 DR/10R-PPB25N00 |
Shaft end form P (DIN metric flat key), Z (DIN spline) A4VSO71 DR/10R-PPB25N00 |
Install flanges B (ISO 4-hole), A (ISO 2-hole), C (SAE 2-hole), D (SAE 4-hole) A4VSO71 DR/10R-PPB25N00 |
Oil port connection 25 (B/S oil port side 90 °), 13 (B/S oil port offset 90 °), etc. A4VSO71 DR/10R-PPB25N00 |
Axis extension configuration N00 (no through axis drive), K (with through axis drive, can be connected to auxiliary pump) A4VSO71 DR/10R-PPB25N00 |
1. Control method: |
DR: Suitable for constant pressure systems (such as accumulator circuits). |
LR: Constant power control, suitable for dynamic load scenarios (such as construction machinery). |
EO2: Electric proportional control, supporting precision flow regulation (such as machine tool hydraulic systems). |
2. Differences in serial numbers: |
Series 10: Basic industrial applications, high cost-effectiveness. |
30 series: Enhanced design, longer lifespan, supports high-frequency response. |
3. Special configuration: |
◦ Through axis drive (suffix K): allows for the series connection of auxiliary pumps (such as gear pumps or plunger pumps) to expand the functionality of multi circuit systems. |
◦ HFC oil compatibility: Some models (such as those with FKM seals) support water ethylene glycol media and need to be labeled with the FHFD suffix. |
4. Application scenarios: |
Widely used in high-pressure open circuit systems such as ceramic presses, metallurgical equipment, and marine machinery, it needs to be matched with NAS level 9 oil cleanliness. |
Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: DFR |
A4VSO71DFR/30R-PPB13N00 A4VSO71DFR/30R-PPB25N00 |
A4VSO71DFR/30R-PZB13N00 A4VSO71DFR/30R-PZB25N00 |
A4VSO71DFR/30R-VPB13N00 A4VSO71DFR/30R-VPB25N00 |
A4VSO71DFR/30R-VZB13N00 A4VSO71DFR/30R-VZB25N00 |
Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: DRG |
A4VSO71DRG/30R-PPB13N00 A4VSO71DRG/30R-PPB25N00 |
A4VSO71DRG/30R-PZB13N00 A4VSO71DRG/30R-PZB25N00 |
A4VSO71DRG/30R-VPB13N00 A4VSO71DRG/30R-VPB25N00 |
A4VSO71DRG/30R-VZB13N00 A4VSO71DRG/30R-VZB25N00 |
Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: LR2 |
A4VSO71LR2/30R-PPB13N00 A4VSO71LR2/30R-PPB25N00 |
A4VSO71LR2/30R-PZB13N00 A4VSO71LR2/30R-PZB25N00 |
A4VSO71LR2/30R-VPB13N00 A4VSO71LR2/30R-VPB25N00 |
A4VSO71LR2/30R-VZB13N00 A4VSO71LR2/30R-VZB25N00 |
Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: EO1 |
A4VSO71EO1/30R-PPB13N00 A4VSO71EO1/30R-PPB25N00 |
A4VSO71EO1/30R-PZB13N00 A4VSO71EO1/30R-PZB25N00 |
A4VSO71EO1/30R-VPB13N00 A4VSO71EO1/30R-VPB25N00 |
A4VSO71EO1/30R-VZB13N00 A4VSO71EO1/30R-VZB25N00 |
