Product Details:
|
Whatsapp: | +85267220981 | Inlet Connection: | Threaded Or Flanged |
---|---|---|---|
Condition: | Internal Meshing Principle | Power: | Hydraulic |
Products Name: | Rexroth Hydraulic Piston Pump | Max Speed: | 1800 Rpm |
Port: | Foshan, China | Maximum Pressure: | 315 Bar |
Max Pressure: | 280 Bar | ||
Highlight: | A4VSO71EO2/30R-PPB13N00 Piston Pump,A4VSO71 High Pressure Piston Pump,1800rpm rexroth axial piston variable pump |

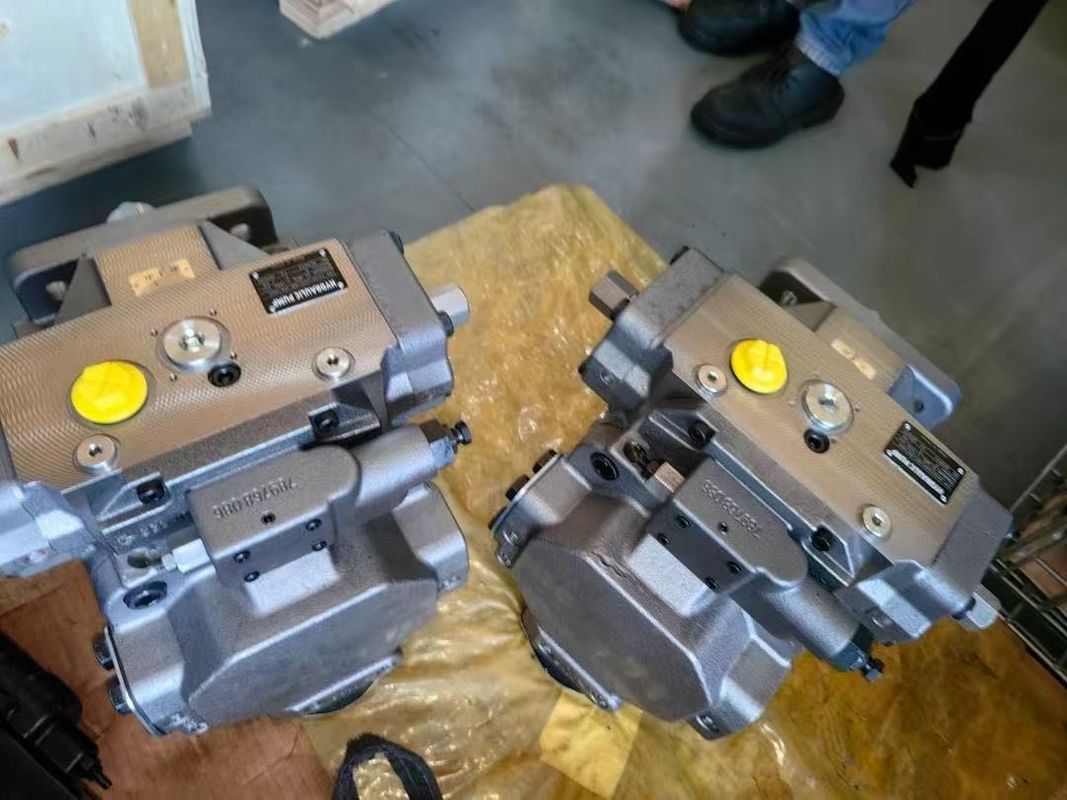

A4VSO71EO2/30R-PPB13N00 A4VSO71EO1/30R-VPB25N00 German Rexroth A4VSO71 series axial variable high-pressure piston pump excavator motor hydraulic pump
Rexroth A4VSO71 Variable Displacement Axial Piston Pump – Technical Datasheet |
Product Overview |
The Rexroth A4VSO71 is a high-efficiency variable displacement axial piston pump designed for open-circuit hydraulic systems. Its swashplate design with electro-hydraulic or mechanical controls ensures precise flow and pressure regulation, suitable for demanding industrial and mobile applications. |
A4VSO71EO2/30R-PPB13N00 A4VSO71EO1/30R-VPB25N00 |
------ |
Key Features |
• Model: A4VSO71 |
• Type: Variable displacement, open circuit |
• Displacement: 71 cm³/rev (adjustable) |
• Maximum Pressure: 350 bar (continuous) / 400 bar (peak) |
• Speed Range: 1200–3600 rpm |
• Control Options: HD, EP, LR, or others (specify) |
• Efficiency: >94% (volumetric at rated conditions) |
• Fluid Compatibility: ISO VG 32–68 hydraulic oils |
------ |
Technical Specifications |
Parameter |
Displacement |
Max Continuous Pressure |
Peak Pressure |
Speed Range |
Weight |
Inlet Pressure |
Volumetric Efficiency |
Noise Level |
------ |
Control Options (Example) |
Control Code |
HD |
EP |
LR |
------ |
Typical Applications |
• Industrial: Hydraulic presses, machine tools, test rigs. |
• Mobile: Construction machinery (excavators, cranes). |
• Energy: Wind turbine pitch systems. |
------ |
Installation & Maintenance |
• Mounting: SAE "A" or "B" flange (ISO 3019-2 standard). |
• Filtration: ≤10 µm (β₅≥75) recommended. |
• Fluid Temperature: 15–80°C (ideal range). |
------ |
Ordering Example |
• Base Model: A4VSO71HD |
◦ Options: SAE flange type, shaft extension, paint coating. |
------ |
Notes |
• Performance data based on ISO 4401 test conditions. |
• Consult official Rexroth documentation (e.g., RE 92702) for detailed schematics. |
A4VSO71EO2/30R-VZB13N00 |
A4VSO71DRG/30R-VPB25N00 |
A4VSO71EO2/30R-PZB13N00 |
A4VSO71EO2/30R-VPB13N00 |
A4VSO71EO2/30R-PPB13N00 |
A4VSO71EO1/30R-VPB25N00 |
A4VSO71EO1/30R-VZB13N00 |
A4VSO71EO1/30R-PZB13N00 |
A4VSO71EO1/30R-VPB13N00 |
A4VSO71EO1/30R-PPB13N00 |
A4VSO71LR2/30R-VPB25N00 |
A4VSO71LR2/30R-VZB13N00 |
A4VSO71LR2/30R-PZB13N00 |
A4VSO71LR2/30R-VPB13N00 |
A4VSO71LR2/30R-PPB13N00 |
A4VSO125DFR/30R-PZB13N00 |
A4VSO71DRG/30R-PZB13N00 |
A4VSO71DRG/30R-VPB13N00 |
A4VSO71DRG/30R-PPB13N00 |
A4VSO71DFR/30R-VPB25N00 |
A4VSO71DFR/30R-VZB13N00 |
A4VSO71DFR/30R-PZB13N00 |
A4VSO71DFR/30R-VPB13N00 |
A4VSO71DR/30R-VZB13N00 |
A4VSO71DFR/30R-PPB13N0 |
A4VSO71LR2G/30R-VPB25N00 |
A4VSO71LR2G/30R-PZB13N00 |
A4VSO71LR2G/30R-VPB13N00 |
A4VSO71LR2G/30R-PPB13N00 |
A4VSO71DR/30R-VPB25N00 |
A4VSO71LR2G/30R-VZB13N00 |
A4VSO500DR/22L-PPB13N00 |
A4VSO71DR/30R-VPB13N00 |
A4VSO71DR/30R-PPB13N00 |
FAQ:
Q1: What is the quality of your products?
A1: All our products are brand new and original. We choose the product condition based on customer needs. Some materials may be discontinued, and only second-hand products are available on the market. If the customer agrees, we can source second-hand items. For customers with a tight budget, we will help find suitable second-hand options. However, over 90% of the products we offer are
brand new and original.
Q2: What is the warranty period for your products?
A2: Brand new and original products typically come with a 1-year warranty. Second-hand products usually have a 3-month warranty. The warranty period may vary based on the manufacturer's terms.
Q3: If the product is not brand new and original, do you offer after-sales service and refunds?
A3: Yes, we do. If you receive a product that is not brand new and original, we support returns and refunds. You will need to return the product to our warehouse, and we will have it inspected by a certified testing agency. If the inspection confirms the product's condition is not due to customer misuse, we will refund your payment.
Q5: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit. Exact time is determined by factory schedule.
