| Rexroth A4VSO Series Axial Piston Variable Pump |
| |
| Product Overview |
| The Rexroth A4VSO is a high-performance axial piston pump with swashplate design, engineered for open-circuit hydraulic systems. Its variable displacement mechanism enables precise flow control, making it ideal for industrial and mobile applications requiring energy efficiency and dynamic response. |
| |
| Key Features: |
| |
| • Displacement Range: 28 to 500 cc/rev (multiple models available) |
| |
| • Pressure Rating: |
| |
| ◦ Maximum Operating Pressure: 350 bar (5,076 psi) |
| |
| ◦ Peak Pressure: 400 bar (5,802 psi) |
| |
| • Speed Range: Up to 3,600 rpm (model-dependent) |
| |
| • Control Options: |
| |
| ◦ Hydraulic displacement control (HD) |
| |
| ◦ Electro-proportional control (EP) |
| |
| ◦ Load-sensing control (DA) |
| |
| • Efficiency: >95% volumetric efficiency at rated conditions |
| |
| • Fluid Compatibility: Mineral oils, biodegradable fluids (HETG/HEES) |
| |
| Technical Highlights: |
| |
| • Swashplate Design: Precision-machined for reduced noise (<70 dB(A)) and extended service life |
| |
| • Port Configuration: SAE flanges or threaded ports (ISO 6149) |
| |
| • Materials: Aluminum or cast iron housing options for corrosion resistance |
| |
| • Integrated Options: Pressure relief valve, charge pump port (for closed-loop variants) |
| |
| Typical Applications: |
| |
| • Plastic injection molding machines |
| |
| • Test rigs & simulation systems |
| |
| • Construction equipment (e.g., excavators, cranes) |
| |
| • Marine and offshore hydraulics |
| |
| Certifications & Standards: |
| |
| • ISO 4401, NFPA, DIN/ISO 9001 compliant |
| |
| • RoHS & REACH compliant |
| |
| Service Information: |
| |
| • Recommended oil viscosity: 16 to 160 mm²/s |
| |
| • Maintenance interval: 5,000 operating hours (standard conditions) |
| |
| Ordering Example: |
| A4VSO 180 EP2 D/10R-PPB13N00 |
| |
| • 180 cc/rev displacement |
| |
| • Electro-proportional control (EP2) |
| |
| • Clockwise rotation |
| |
| • SAE flange porting |
| |
| For detailed CAD models and performance curves, visit Rexroth Product Portal(#) or contact local Bosch Rexroth sales. |
| |
| |
| |

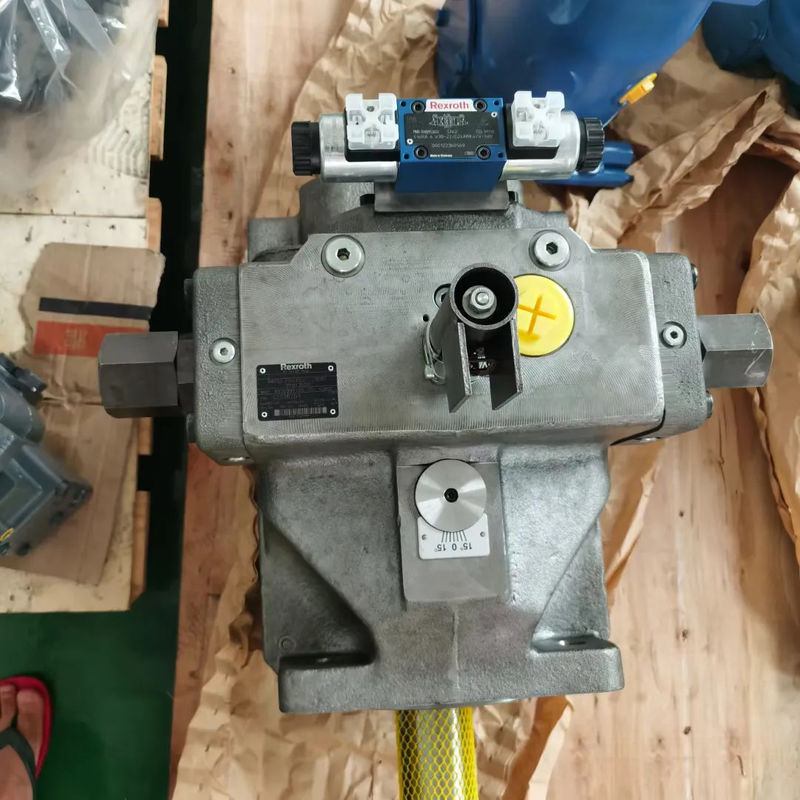

| Rexroth A4VSO 125 Axial Piston Variable Pump |
| |
| Product Overview |
| |
| The A4VSO 125 is a high-efficiency, swashplate-design variable displacement pump from Bosch Rexroth, designed for open-circuit hydraulic systems. With a displacement of 125 cc/rev, it delivers precise flow control and energy savings in demanding industrial and mobile applications. |
| |
| Key Specifications |
| |
| • Displacement: 125 cm³/rev (fixed or variable, depending on model) |
| |
| • Pressure Ratings: |
| |
| ◦ Maximum Operating Pressure: 350 bar (5,076 psi) |
| |
| ◦ Peak Pressure (Intermittent): 400 bar (5,802 psi) |
| |
| • Speed Range: |
| |
| ◦ Continuous Operation: Up to 2,800 rpm |
| |
| ◦ Peak Speed (Intermittent): 3,600 rpm |
| |
| • Control Options: |
| |
| ◦ Hydraulic Displacement Control (HD) |
| |
| ◦ Electro-Proportional Control (EP) |
| |
| ◦ Load-Sensing Control (DA, DFR) |
| |
| • Efficiency: |
| |
| ◦ Volumetric Efficiency: ≥95% at rated conditions |
| |
| ◦ Mechanical Efficiency: ≥92% |
| |
| Design & Construction |
| |
| • Swashplate Mechanism: Precision-balanced for low noise (<72 dB(A)) and high durability |
| |
| • Housing Materials: |
| |
| ◦ Aluminum (lightweight, corrosion-resistant) |
| |
| ◦ Cast Iron (heavy-duty applications) |
| |
| • Port Configurations: |
| |
| ◦ SAE Flanges (standard) |
| |
| ◦ Threaded Ports (ISO 6149) (optional) |
| |
| • Sealing System: High-performance shaft seals for compatibility with mineral oils, HETG/HEES biodegradable fluids |
| |
| Typical Applications |
| |
| • Industrial Machinery: Plastic injection molding, presses, test benches |
| |
| • Mobile Hydraulics: Excavators, cranes, drilling rigs |
| |
| • Marine & Offshore: Winches, steering systems |
| |
| Control Variants (Example Models) |
| |
| Model Code |
| A4VSO 125 HD |
| A4VSO 125 EP |
| A4VSO 125 DFR |
| |
| Maintenance & Service |
| |
| • Recommended Oil: ISO VG 46-68 (16–160 mm²/s viscosity) |
| |
| • Maintenance Interval: 5,000 operating hours (under standard conditions) |
| |
| • Filter Requirement: βₓ(c) ≥ 75 (ISO 4406:2021) |
| |
| Ordering Example |
| |
| A4VSO 125 EP2 D/10R-PPB13N00 |
| |
| • 125 cc/rev displacement |
| |
| • Electro-proportional control (EP2) |
| |
| • Clockwise rotation (D) |
| |
| • SAE flange ports (10R) |
| |
| |
| |
| |
| ------ |
| |
| Need Customization? |
| |
| If you require specific pressure settings, port configurations, or certifications (e.g., ATEX for explosive environments), please provide details for a tailored version. |
| |
