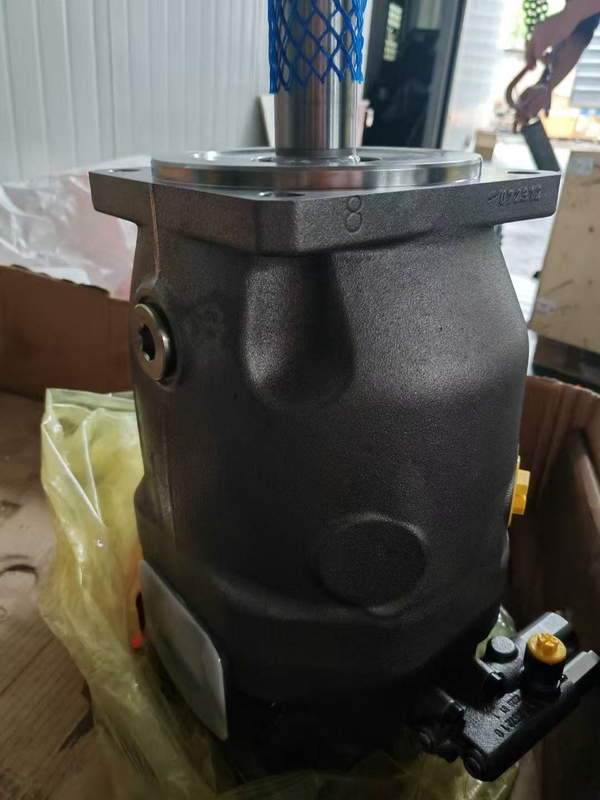

Rexroth A10VSO45 Hydraulic Piston Pump High Pressure Variable Displacement

The A10VSO45 is a variable displacement axial piston pump with a swashplate design, designed for open-circuit hydraulic systems. It delivers flow proportional to drive speed and displacement, with stepless flow adjustment via swashplate angle control. Key features include high efficiency, low noise, and a compact design with ISO/SAE mounting flanges.

Displacement: 45 cc/rev (other sizes: 28, 71, 100, 140 cc/rev available)
Pressure Ratings:
• Nominal pressure: 280 bar (28 MPa)
• Peak pressure: 350 bar (35 MPa)
Control Options: DG (direct actuation), DR (pressure control), DFR (pressure/flow control), DFLR (pressure/flow/power control)
Speed Range: Up to 1,500 rpm (varies with model and fluid viscosity)

The pump is widely used in:
• Industrial machinery (e.g., presses, plastic injection molding)
• Mobile hydraulics (construction, mining equipment)
• Marine and aerospace systems due to its high power-to-weight ratio and reliability

Flow is adjusted by changing the swashplate angle via an external control mechanism (e.g., pressure compensator or manual adjustment). This allows the pump to deliver only the required flow, reducing energy consumption.

• Regularly check for leaks, abnormal noise, or pressure fluctuations
• Monitor fluid cleanliness (ISO 4406 Class 18/16/13 recommended)
• Replace seals and bearings per the manufacturer's service intervals

• Flow instability: Check for air ingress, clogged filters, or worn control pistons
• Pressure drops: Inspect relief valves or compensator settings
