Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar

Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar
Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar
Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar

Large Image :  Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: A10VSO100DR/31R-PKC62K40 A10VSO100DR/31R-PKC62N00 A10VSO100DR/31R-PKC62N00 A10VSO100DR/31R-PPA12K25 A10VSO100DR/31R-PPA12N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar

Description
Transport Package: Wooden Box Mnr: R902479804
Speed: 3 Speed Settings Products Name: Rexroth Hydraulic Piston Pump
Model: A10VSO Rotation: 0.2-cp Can Be Transported In Reverse
Type No: AA10VSO71DR/31R-VPA42N00 Seal Type: Nitrile Rubber Or Viton
Charging: Micro5p Weight: 8.5 Kg
Highlight:

Rexroth A10VSO hydraulic piston pump

,

100 cm³/rev hydraulic pump

,

350 bar hydraulic piston pump

Rexroth A10VSO Hydraulic Piston Pump
Model: A10VSO100DR/31R-PKC62K40, A10VSO100DR/31R-PKC62N00, A10VSO100DR/31R-PPA12K25, A10VSO100DR/31R-PPA12N00
German variable high-pressure hydraulic pump motor Rexroth plunger pump
Product Specifications
Attribute Value
Transport Package Wooden Box
Mnr R902479804
Speed 3 Speed Settings
Products Name Rexroth Hydraulic Piston Pump
Model A10VSO
Rotation 0.2-cp can be transported in reverse
Type No AA10VSO71DR/31R-VPA42N00
Seal Type Nitrile rubber or Viton
Charging micro5p
Weight 8.5 kg
Technical Description
Troubleshooting Guide
Insufficient or No Oil Output
Possible Causes:
  • Excessive resistance in oil suction pipeline (clogged oil filter, low oil tank level, or air leakage)
  • Internal leakage of the pump (scratches on oil distribution plate, poor sealing)
  • Inclination angle of the inclined plate too small
  • Motor reversal (incorrect phase sequence)
Solutions:
  • Clean oil filter, add oil to normal level, check pipeline sealing
  • Replace worn parts (plungers, oil distribution plates) or grind mating surfaces
  • Adjust variable piston to increase inclination angle
  • Adjust motor phase sequence
Abnormal Pressure (Too High/Too Low)
Low Pressure Solutions:
  • Check for pipeline leaks
  • Inspect overflow valve faults
  • Check cylinder block distribution plate leaks
High Pressure Solutions:
  • Adjust overflow valve
  • Check directional valve or return oil pipeline
Daily Maintenance
  • Maintain oil temperature at 25-60℃, cleanliness level ≥8
  • Conduct comprehensive inspection of seals, filters every 6 months
  • After 3000 hours operation, check oil replenishment pump status daily
  • Ensure pump is filled with oil before starting to avoid dry friction
Installation Requirements
  • Pump shaft and motor shaft concentricity <0.05mm
  • Suction height should not exceed 500mm
  • Use original seals and wear-resistant components for replacements

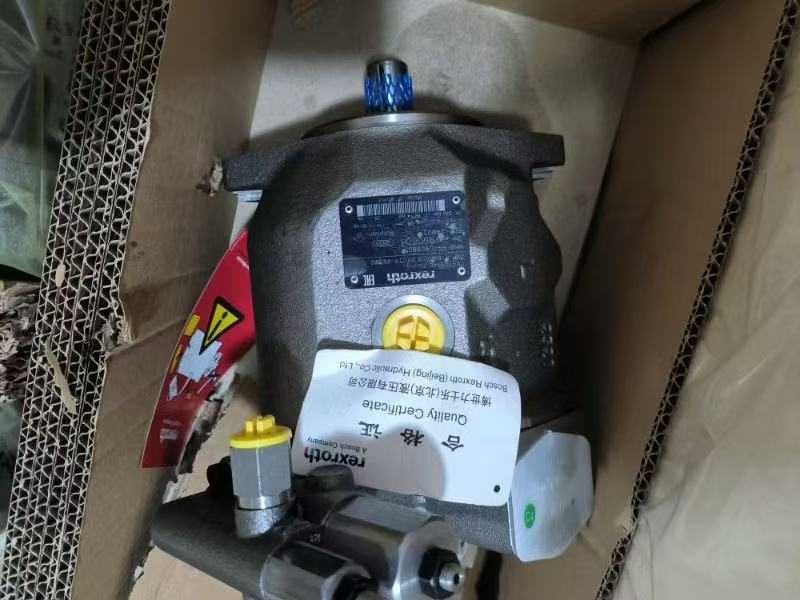

Product Image
Rexroth A10VSO Hydraulic Piston Pump 100 cm³/rev 350 Bar 0
Functional Specifications
Key Parameters
Parameter Value/Range
Displacement 100 cm³/rev (Fixed displacement design)
Max Pressure 350 bar (continuous), Peak: 400 bar
Speed Range 800-3600 rpm (Dependent on lubrication conditions)
Fluid Compatibility Mineral oil (ISO VG 46-68), Temp range: -20°C to +80°C
Efficiency ≥92% (volumetric), Tested per ISO 4409
