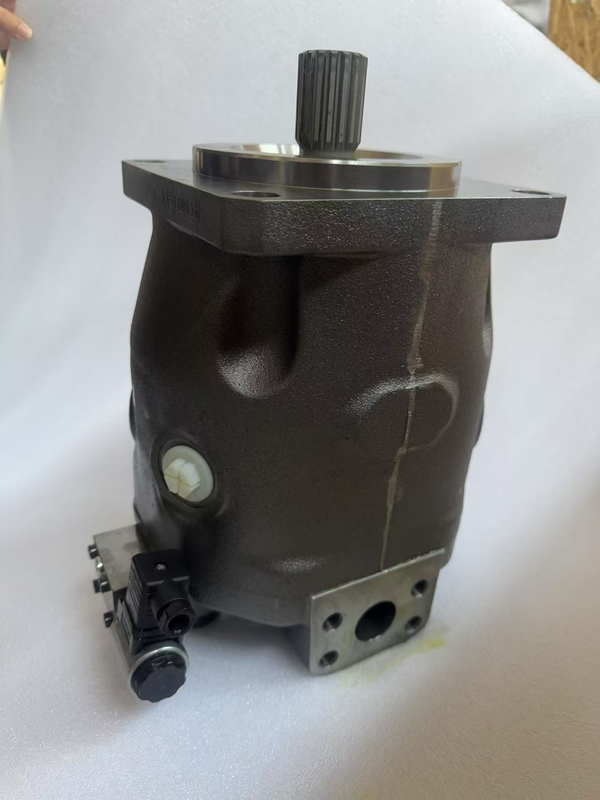

Rexroth A10VSO71 Hydraulic Pump 315bar Axial Piston Mining

The A10VSO71 is an axial piston variable displacement pump manufactured by Bosch Rexroth. It operates via a swashplate design, allowing adjustable flow rates by changing the swashplate angle. This pump is widely used in high-pressure hydraulic systems for industrial machinery, construction equipment, and marine applications due to its efficiency, compact structure, and pressure adaptability.

• Displacement (Vg max): 71 cm³/rev
• Nominal Pressure (p nom): 280 bar
• Maximum Pressure (p max): 350 bar
• Speed Range: Up to 2,200 rpm (at Vg max)
• Flow Rate (at nominal speed): 156 L/min
• Weight: ~33 kg (standard model)
• Control Options: Pressure cutoff (DR type), load sensing, or proportional control variants

This pump is ideal for:

• Hydraulic presses and injection molding machines
• Construction machinery (e.g., excavators, cranes)
• Marine and offshore systems
• Industrial hydraulic power units
