Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System

Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System
Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System
Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System

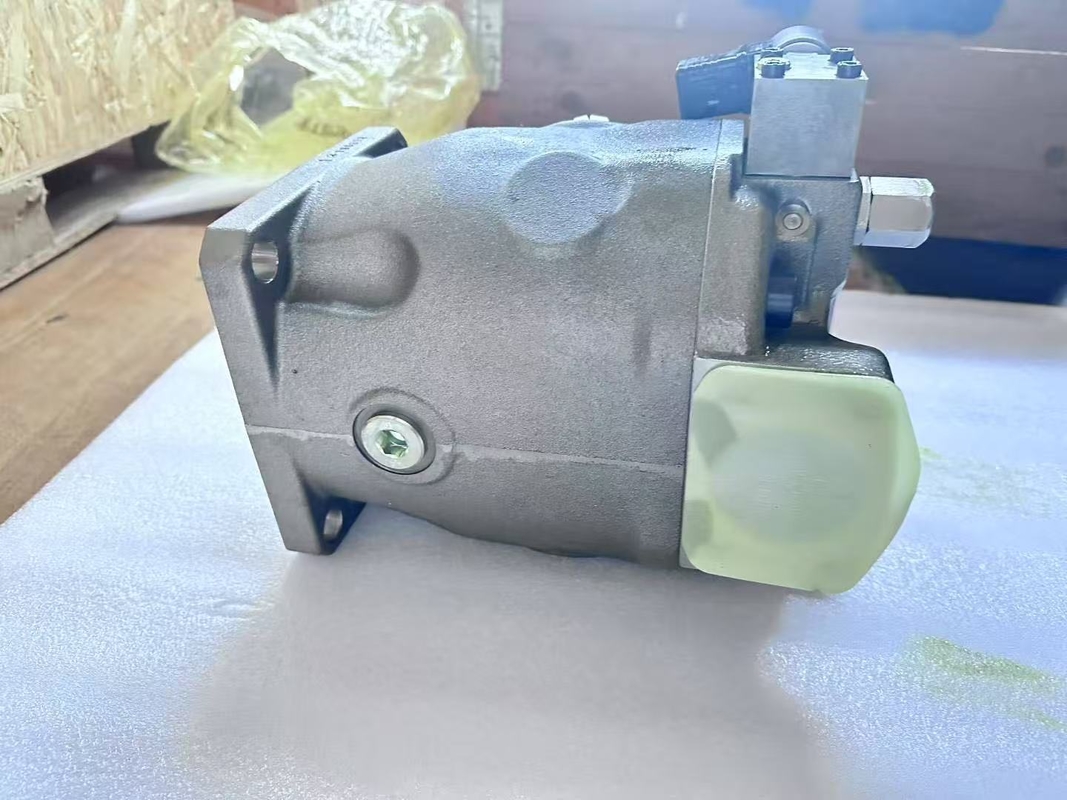

Large Image :  Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: A10VSO71DFR/31R-PKC62N00 A10VSO71DFR/31R-PKC92K01 A10VSO71DFR/31R-PKC92K02 A10VSO71DFR/31R-PKC92K03 A10VSO71DFR/31R-PKC92K03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: Wooden crate
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System

Description
Email: Yli97584@gmail.com Warranty: One Year
Speed Range: 1500-2700 Rpm Model No: R910905146
Type No: A10VSO140DFLR/31R-PPB12N00 Inlet Connection: Threaded Or Flanged
Seals: Nitrile Or Viton Rotation: 0.2-cp Can Be Transported In Reverse
Pressure: High Pressure,Low Pressure Maximum Pressure: 280 Bar
Material No: R902465419
Highlight:

Rexroth A10VSO71 hydraulic pump 280bar

,

hydraulic pump for mining system

,

high-pressure gear pump 1500-2700rpm

A10VSO Series Axial Piston Pumps
A10VSO71DFR/31R-PKC62N00, A10VSO71DFR/31R-PKC92K01, A10VSO71DFR/31R-PKC92K02, A10VSO71DFR/31R-PKC92K03, A10VSO71DFR/31R-PKC92K03
German Rexroth hydraulic pump for mining hydraulic systems
Product Specifications
Email Yli97584@gmail.com
Warranty One year
Speed Range 1500-2700 rpm
Model No R910905146
Type No A10VSO140DFLR/31R-PPB12N00
Inlet Connection Threaded or Flanged
Seals Nitrile or Viton
Rotation 0.2-cp can be transported in reverse
Pressure High Pressure, Low Pressure
Maximum Pressure 280 bar
Material No R902465419
Technical Description
Rexroth A10VSO hydraulic pump series for industrial applications
Troubleshooting Guide
Insufficient or no oil output
  • Possible Causes: Excessive resistance in oil suction pipeline, internal leakage, small inclination angle, motor reversal
  • Solutions: Clean oil filter, check oil level, replace worn parts, adjust variable piston, correct motor phase sequence
Vibration and noise
  • Mechanical Causes: Misalignment, damaged coupling, loose bolts, bearing wear
  • Hydraulic Causes: Inadequate inlet pipe, clogged filter, high viscosity oil
  • Solutions: Realign components, replace damaged parts, select proper oil grade
Overheating
  • Causes: Improper mechanical clearance, high-pressure oil leakage, filter blockage
  • Solutions: Adjust gaps, increase cooling capacity, clean/replace filters
Maintenance Requirements
  • Maintain oil temperature at 25-60℃ with cleanliness level ≥8
  • Perform comprehensive inspections every 6 months
  • Check oil replenishment pump status after 3000 hours of operation
  • Always prime pump before starting to prevent dry friction
Installation & Operation
  • Pump/motor shaft concentricity must be <0.05mm
  • Maximum suction height: 500mm
  • Use only original Rexroth seals and wear components
Rexroth A10VSO71 Hydraulic Pump 280bar 1500-2700rpm Mining System 0
Frequently Asked Questions
What is the A10VSO71 pump?
The A10VSO71 is an axial piston variable displacement pump manufactured by Bosch Rexroth, featuring swashplate design for adjustable flow rates. Widely used in industrial machinery, construction equipment, and marine applications.
Key Specifications
  • Displacement: 71 cm³/rev
  • Nominal Pressure: 280 bar
  • Maximum Pressure: 350 bar
  • Speed Range: Up to 2,200 rpm
  • Flow Rate: 156 L/min (at nominal speed)
  • Weight: ~33 kg (standard model)
Pressure Cutoff Function
The DR control variant automatically reduces displacement when system pressure reaches preset value, maintaining constant pressure while minimizing energy consumption.
Common Applications
  • Hydraulic presses and injection molding machines
  • Construction machinery (excavators, cranes)
  • Industrial hydraulic systems
  • Mining equipment
Compatible Models
R902405606 A10VO100DFR1/31R-VSC62N00, R902411500 A10VSO45DFLR/31R-VPA12N00 145N
R902424086 A10VO71DFR1/31R-VSC62N00, R902429793 A10VSO140DFLR/31R-VPB12N00 265N
R902431762 A10VSO28DFLR/31R-VPA12N00 35N, R902443895 A10VSO45DFLR/31R-VPA12N00 50N
[Additional model numbers continue...]
