Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement

Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement
Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement
Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement

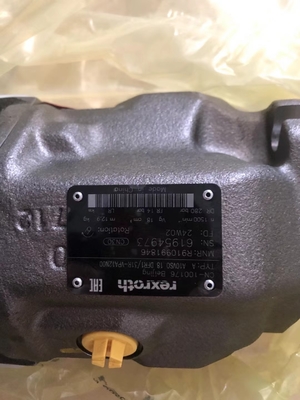

Large Image :  Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: A10VSO100DFR/31R-VKC62N00 A10VSO100DFR/31R-VSA12N00 A10VSO100DFR/31R-PPA12N00 A10VSO100FHD/31R-PPA12N00 A10VSO100DRG/31R-PPA12N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement

Description
Fuel: +85267220981 Model No: A4VSO71DFR/10R-PPB13K31-S1738
Series: A2fo Drive Mode: Mechanically Driven Pump
Weight: 12-50 Kg Type No: AA10VSO71DFR1/31R-VPA42N00
Inlet Connection: Threaded Or Flanged Maximum Pressure: 315 Bar
After Serive: Online Video Shaft Seal Type: Radial Shaft Seal
Highlight:

Rexroth A10VSO100 hydraulic pump

,

axial piston variable displacement pump

,

hydraulic pump 315 bar pressure

Rexroth A10VSO Series Hydraulic Pump
A10VSO100DFR/31R-VKC62N00 A10VSO100DFR/31R-VSA12N00 A10VSO100DFR/31R-PPA12N00 A10VSO100FHD/31R-PPA12N00 A10VSO100DRG/31R-PPA12N00 German mining hydraulic pump Rexroth axial variable piston pump
Product Specifications
Attribute Value
Model No A4VSO71DFR/10R-PPB13K31-S1738
Series a2fo
Drive Mode Mechanically Driven Pump
Weight 12-50 kg
Type No AA10VSO71DFR1/31R-VPA42N00
Inlet Connection Threaded or Flanged
Maximum Pressure 315 bar
Shaft Seal Type Radial Shaft Seal
Technical Features
Key Specifications
  • Displacement: 100 cm³/rev (Fixed displacement design)
  • Max Pressure: 350 bar (continuous), Peak: 400 bar
  • Speed Range: 800-3600 rpm (Dependent on lubrication conditions)
  • Fluid Compatibility: Mineral oil (ISO VG 46-68), Temp range: -20°C to +80°C
  • Efficiency: ≥92% (volumetric), Tested per ISO 4409
Functional Components
  • Housing: Aluminum alloy (hardness: HB 90-120)
  • Rotating Group: Ceramic-coated pistons for reduced wear
  • Control Mechanism: Pressure compensator (DFR) or load-sensing (EP) options
  • Seals: NBR/FKM materials (valid date: 10 years from manufacture)
Troubleshooting Guide
Insufficient or No Oil Output
  • Causes: Clogged oil filter, low oil level, air leakage, internal pump leakage, small inclination angle, motor reversal
  • Solutions: Clean filter, add oil, check seals, replace worn parts, adjust variable piston, correct motor phase sequence
High Vibration and Noise
  • Mechanical Causes: Misalignment, damaged coupling, loose bolts, bearing wear
  • Hydraulic Causes: Restricted inlet, clogged filter, high viscosity
  • Solutions: Realign components, replace damaged parts, select proper oil, ensure smooth piping
Pump Overheating
  • Causes: Improper mechanical clearance, high-pressure leakage, filter blockage
  • Solutions: Adjust gaps, increase cooling capacity, clean/replace filter
Maintenance Guidelines
  • Maintain oil temperature at 25-60℃ with cleanliness level ≥8
  • Conduct comprehensive inspections every 6 months (seals, filters, components)
  • Check oil replenishment pump status after 3000 hours of operation
  • Always prime pump before starting to prevent dry friction
Installation Requirements
  • Pump/motor shaft concentricity <0.05mm
  • Maximum suction height: 500mm
  • Use original seals and wear-resistant components for replacements
Rexroth A10VSO100 Hydraulic Pump 315 Bar Axial Piston Variable Displacement 0
Quality Assurance
Inspection Criteria
  • IQC: Dimensional checks per DWG-100-01 (tolerance ±0.05mm)
  • IPQC: Leakage test at 1.5x rated pressure (15-min hold)
  • OQC: Noise level ≤75 dB(A) at 1500 rpm
Note: Critical defects include seal failure and pressure drop >10%
